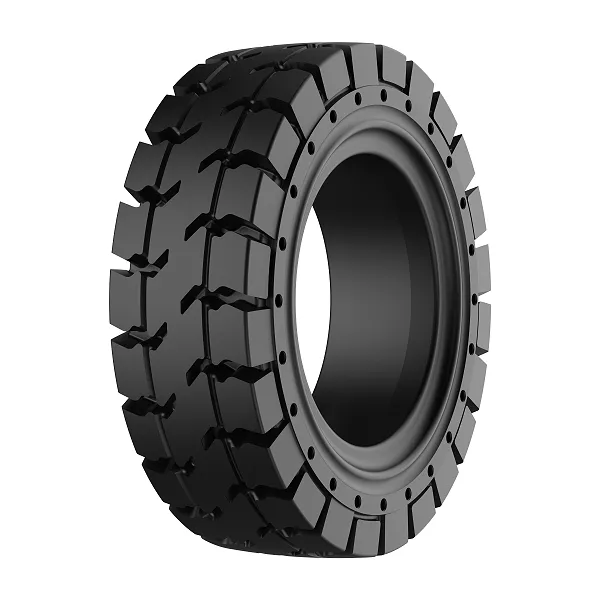

Skid Steer Loader Solid Tire

Application: Road Construction/ Sandstone Field/ Waste & Recycling Yard

E-CATALOGUE
DOWNLOAD
HOME/ PRODUCTS/ Industrial Tire/ Skid Steer Loader Solid Tire
Industrial Tire / Skid Steer Loader Solid Tire
CLOSE BOX
Size
  • 5.70-12
  • 7.50-16
    195/95-16
  • 8.25-16
    235/85-16
  • 13.00-24
  • 14.00-24
  • 15.00-20
  • 16/70-20
    405/70-20
  • 23x8.5-12
  • 27x8.5-15
  • 27x12-15
  • 30x8.5-16
  • 30x10-16
  • 30x10-18
  • 30x10-20
  • 31x10.5-16
  • 31x10.5-18
  • 31x10.5-20
  • 32.5x15-16
  • 32x10-20
  • 33x12-16
  • 33x12-20
  • 36.5x12-20
  • 36.5x14-20
  • 38.5x14-20
  • 385/65-24
  • 385/70-20
  • 445/65-24
Pattern
  • L1Hs
  • L1H
  • S1Hs
  • F1H
  • V1H
  • E1H
  • F1
  • S1
  • S1H
  • Z1H
O.D. (inch/mm)
  • 21.7/550
  • 22.8/580
  • 26.6/675
  • 29.5/750
  • 29.9/760
  • 30.0/762
  • 30.2/767
  • 30.3/770
  • 31.5/800
  • 31.7/805
  • 31.8/807
  • 31.9/810
  • 32.0/812
  • 32.3/820
  • 33.0/838
  • 33.1/840
  • 33.3/845
  • 36.2/920
  • 36.8/935
  • 38.2/970
  • 41.5/1055
  • 41.7/1060
  • 45.3/1150
  • 49.2/1250
  • 50.0/1270
  • 52.0/1320
  • 52.8/1340
  • 53.1/1350
S.W. (inch/mm)
  • 5.5/140
  • 7.3/185
  • 7.5/190
  • 7.6/194
  • 7.7/195
  • 7.9/200
  • 8.3/210
  • 8.3/212
  • 8.3/215
  • 8.7/220
  • 9.1/230
  • 9.3/235
  • 9.4/240
  • 9.8/248
  • 9.8/250
  • 10.6/270
  • 10.8/275
  • 11.0/280
  • 11.8/299
  • 12.6/320
  • 13.4/340
  • 13.5/342
  • 13.8/350
  • 14.2/360
  • 14.7/374
  • 16.1/410
Load Capacity (kgs@25 km/h)
  • 1300
  • 1700
  • 2000
  • 2100
  • 2200
  • 2400
  • 2500
  • 2600
  • 2800
  • 2900
  • 3000
  • 3200
  • 3300
  • 3500
  • 3600
  • 4000
  • 4200
  • 6500
  • 6800
  • 8000
  • 8800
  • 10500
Rim Diameter (inch)
  • 12
  • 15
  • 16
  • 18
  • 20
  • 24
CLEAR SEND
SPECIFICATION
PATTERN
SPECIFICATION
Inquiry Size Pattern Rim Width (inch) O.D. (inch/mm) S.W. (inch/mm) Load Capacity (kgs@25 km/h) Replaceable Size Of Pneumatic Tire
5.70-12 L1Hs 4.0021.7/5505.5/14013005.70-12
23x5.70-12
23x8.5-12 L1Hs 5.0022.8/5807.5/19017008.50-12
23x8.50-12
27x8.5-15 L1Hs 5.5026.6/6757.9/200210027x8.5-15
27x12-15 L1Hs 8.5026.6/67511.0/280260027x10.5-15
30x8.5-16 L1H 6.0030.0/7627.9/200200010-16.5
10.00-16.5
33x10-16.5
265-521
30x10-16 L1H 6.0029.9/7609.1/230220010-16.5
10.00-16.5
33x10-16.5
265-521
30x10-16 S1Hs 6.0030.2/7679.1/230220010-16.5
33x10-16.5
30x10-16 F1H 6.0030.2/7679.4/240220010-16.5
10.00-16.5
33x10-16.5
265-521
30x10-16 V1H 6.0029.5/7508.7/220240010-16.5
33x10-16.5
7.50-16
195/95-16		 E1H 6.0030.3/7707.3/18530008.50-15
10-16.5
10.00-16.5
33x10-16.5
265-521
7.50-16
195/95-16		 F1H 6.0031.7/8057.6/19430008.50-15
10-16.5
33x10-16.5
7.50-16
195/95-16		 S1Hs 6.0031.5/8008.3/21528008.50-15
10-16.5
33x10-16.5
31x10.5-16 L1H 6.0031.8/8079.3/235240031x15.5-15
10-16.5
10.00-16.5
13-16.5
15.5-16.5
31x13-16.5
31x15.5-16.5
33x10-16.5
265-521
32.5x15-16 L1H 11.2532.3/82014.7/374360033-15.5
12-16.5
12.00-16.5
31x12-16.5
33x15.5-16.5
305-546
8.25-16
235/85-16		 E1H 6.0031.9/8107.7/195360033-15.5
10.0/75-16.5
12-16.5
12.00-16.5
31x12-16.5
33x15.5-16.5
305-546
8.25-16
235/85-16		 F1H 6.0033.3/8458.3/212360033-15.5
12-16.5
31x12-16.5
33x15.5-16.5
10.0/75-16.5
8.25-16
235/85-16		 S1Hs 6.0033.0/8388.3/210360033-15.5
12-16.5
31x12-16.5
33x15.5-16.5
10.0/75-16.5
33x12-16 L1H 8.0032.3/82010.8/275320033-15.5
12-16.5
12.00-16.5
31x12-16.5
33x15.5-16.5
305-546
33x12-16 F1H 8.0033.3/84510.8/275320033-15.5
12-16.5
31x12-16.5
33x15.5-16.5
33x12-16 V1H 8.0032.3/82010.6/270350033-15.5
12-16.5
31x12-16.5
33x15.5-16.5
30x10-18 L1H 7.0030.2/7679.4/240220010-16.5
10.00-16.5
33x10-16.5
265-521
31x10.5-18 L1H 7.0031.8/8079.3/235240010-16.5
10.00-16.5
33x10-16.5
265-521
30x10-20 L1Hs 7.0030.2/7679.4/240220010.0/75-15.3
10-16.5
10.00-16.5
33x10-16.5
265-521
30x10-20 S1Hs 7.0030.2/7679.8/248250010.0/75-15.3
10-16.5
10.00-16.5
33x10-16.5
265-521
31x10.5-20 L1H 7.0031.8/8079.3/235240031x15.5-15
10-16.5
10.00-16.5
13-16.5
31x13-16.5
31x15.5-16.5
33x10-16.5
15.5-16.5
265-521
32x10-20 L1H 7.0032.3/8209.8/250260010-16.5
10.00-16.5
10.0/75-16.5
33x10-16.5
12-16.5
12.00-16.5
31x12-16.5
265-521
305-546
32x10-20 S1Hs 7.0032.0/8129.8/250290010-16.5
10.00-16.5
10.0/75-16.5
33x10-16.5
12-16.5
12.00-16.5
31x12-16.5
265-521
305-546
33x12-20 L1Hs 8.0033.1/84010.8/275300012-16.5
12.00-16.5
33-15.5
31x12-16.5
33x15.5-16.5
305-546
33x12-20 S1Hs 8.0032.3/82011.0/280330012-16.5
31x12-16.5
33-15.5
33x15.5-16.5
33x12-20 V1H 8.0032.3/82010.6/270330012-16.5
31x12-16.5
33-15.5
33x15.5-16.5
36.5x12-20 L1H 8.0036.8/93511.8/299360012.00-18
12.5-18
12.5R18
12.0/75-18
12.5/80-18
12.5/80R18
335/80R18
12.5-20
12.5R20
14-17.5
14.00-17.5
36.5x14-20 L1H 11.0036.2/92013.4/340400014-17.5
14.00-17.5
15.00-20 L1H 11.0036.2/92013.4/340400014-17.5
14.00-17.5
38.5x14-20 L1H 11.0038.2/97013.5/342420015-19.5
15.00-19.5
16/70-20
405/70-20		 L1H 10.0041.5/105514.2/360650016/70-20
16/70R20
405/70-20
405/70R20
385/70-20 L1H 10.0041.7/106014.2/3606500400/70R20
385/65-24 L1H 10.0041.7/106014.2/360800016/70-24
405/70-24
405/70R24
455/70R24
445/65-24 L1H 12.0045.3/115016.1/410800018-22.5
18.00-22.5
18.00R22.5
500/70-24
500/70R24
13.00-24 L1H 8.5050.0/127012.6/320680013.00R24
13.00-24 F1 8.5049.2/125012.6/320880013.00R24
13.00-24 F1H 8.5049.2/125012.6/320680013.00R24
14.00-24 L1H 8.50
10.00		52.8/134013.4/340800014.00R24
14.00-24 F1 8.50
10.00		52.0/132013.4/3401050014.00R24
14.00-24 F1H 8.50
10.00		52.0/132013.4/340800014.00R24
14.00-24 S1 8.50
10.00		52.8/134013.8/3501050014.00R24
14.00-24 S1H 8.50
10.00		52.8/134013.8/350800014.00R24
14.00-24 Z1H 8.50
10.00		53.1/135014.2/360800014.00R24
